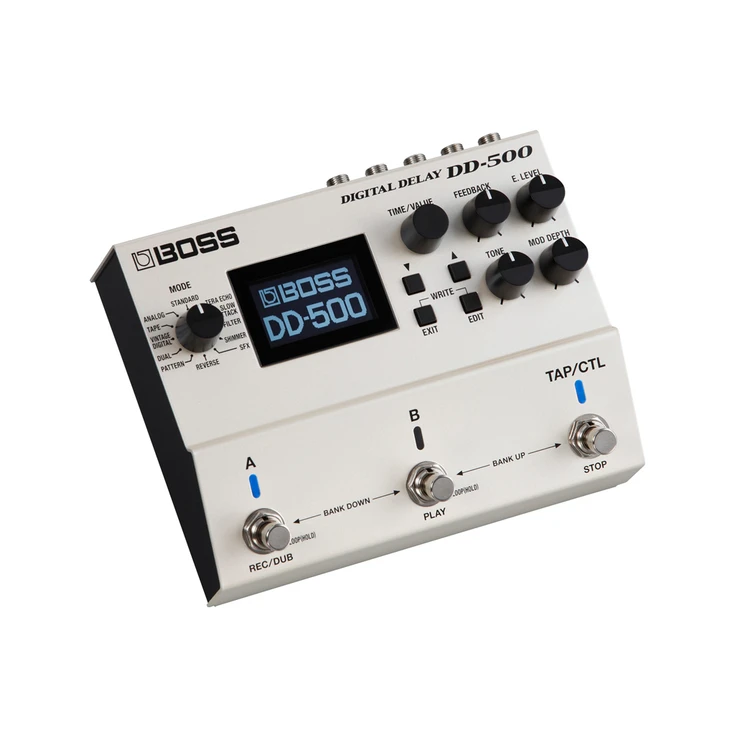

BOSS DD-500 Digital Delay


Studio-level sound with class-leading 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate

12 versatile delay modes from vintage to modern deliver unlimited creative possibilities

Unrivaled real-time expression with customizable control settings for onboard and external switches

Graphic LCD for easy, intuitive operation while performing and editing

Onboard patch memories and hands-on controls

Equipped with a built-in Phrase Looper, MIDI, USB, and more

Selectable buffered-bypass or true-bypass operation

Runs on four AA-size batteries or PSA-series AC adapter

Dedicated editor software available

DD-500 Version 2 Software Newly Added Features

Improved A/B Simul mode with more flexible control and input/output options

Five newly added effects, including vintage Binson Echorec 2, touch-responsive filter delay, and more

Additional detailed tone-editing parameters such as feedback damp and modulation mode

More flexible routing options with the new Insert Loop function, selectable EQ insertion position, expanded independent delay connection modes, and more

Enhanced effects with extended parameters and sound quality refinements, including stereo pitch shifters and overtone effects for Shimmer mode, effect targets for Slow Attack mode, and more

*For complete DD-500 Version 2 software details, please refer to the supplementary manual available in the Support section.
