SpecificationsSampling Frequency44.1 kHzAD Conversion24 bits + AF method
* AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.DA Conversion24 bitsEffects90 typesPatches99 (User) + 99 (Preset)Phrase Loop32 sec.Nominal Input LevelINPUT: -10 dBu, AUX IN: -20 dBuMaximum Input LevelINPUT: +7 dBu, AUX IN: 0 dBuInput ImpedanceINPUT: 1 M ohm, AUX IN: 27 k ohmsNominal Output LevelOUTPUT (L/MONO, R): -10 dBu, PHONES: -10 dBuOutput ImpedanceOUTPUT (L/MONO, R): 1 k ohm, PHONES: 44 ohmsRecommended Load ImpedanceOUTPUT (L/MONO, R): 10 k ohms or greater, PHONES: 44 ohms or greaterControlsDOWN switch, UP switch CTL1 switch

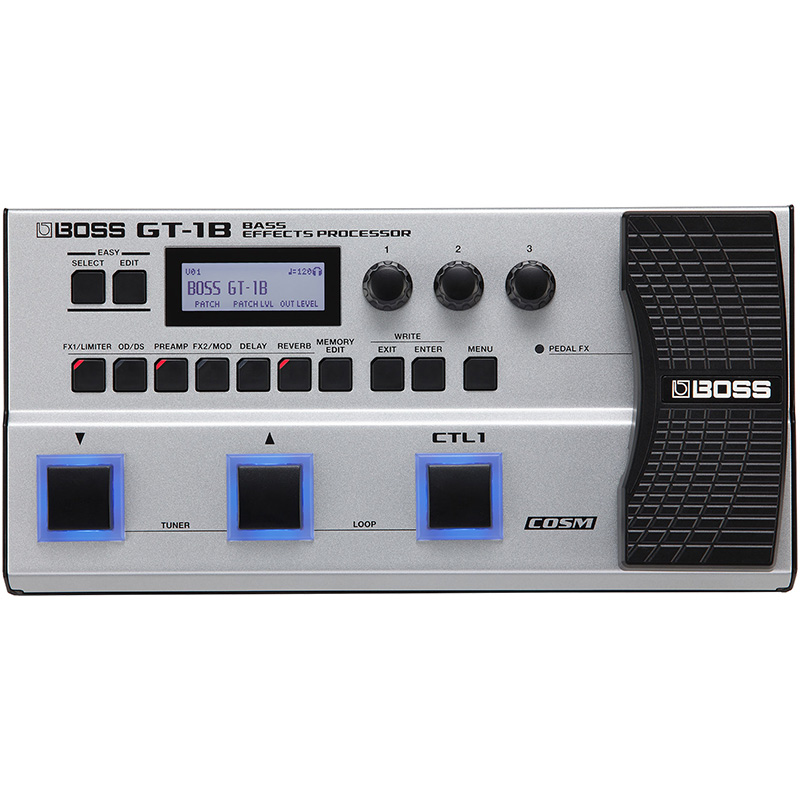

EASY SELECT button, EASY EDIT button, FX1/LIMITER button, OD/DS button, PREAMP button, FX2/MOD button, DELAY button, REVERB button, MEMORY EDIT button, EXIT button, ENTER button, MENU button
1 knob, 2 knob, 3 knob

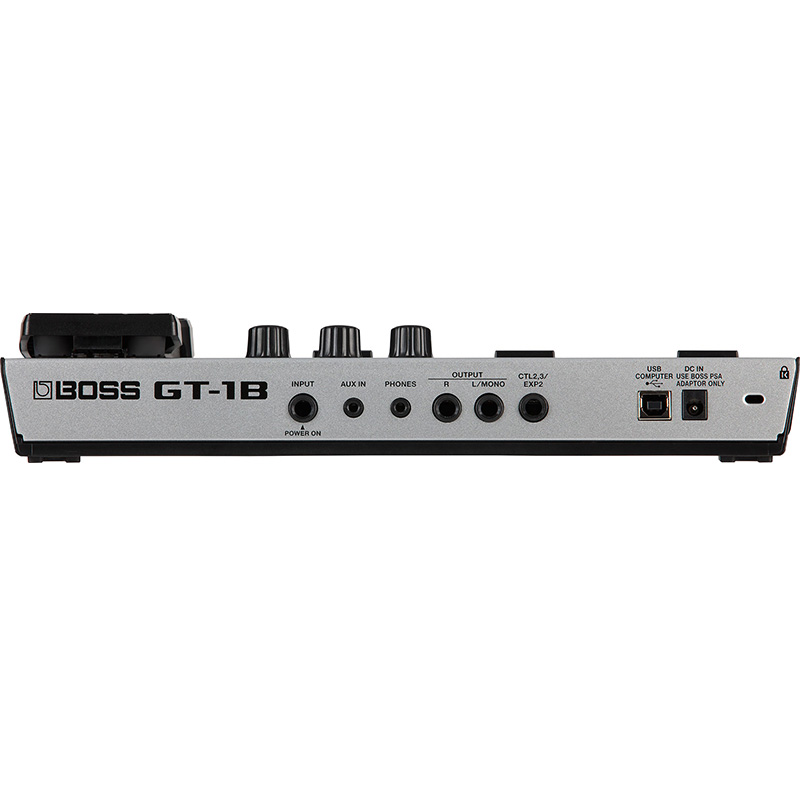

Expression pedalDisplayGraphic LCD (132 x 32 dots, backlit LCD)ConnectorsINPUT jack, OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
CTL2, 3/EXP2 jack: 1/4-inch TRS phone type
AUX IN jack: Stereo miniature phone type
PHONES jack: Stereo miniature phone type
USB COMPUTER port: USB type B
DC IN jackPower SupplyAlkaline battery (AA, LR6) x 4, AC adaptor (sold separately)Current Draw200 mAExpected battery life under continuous useAlkaline: Approx. 7 hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner’s manual
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 4Options (sold separately)AC adaptor: PSA series
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: FV-500L, FV-500H, EV-30, Roland EV-5Size and WeightWidth305 mm
12-1/16 inchesDepth152 mm
6 inchesHeight56 mm
2-1/4 inchesMaximum height74 mm
2-15/16 inchesWeight (including battery)1.3 kg
2 lbs 14 oz* 0 dBu = 0.775 Vrms
